GraphQL

GraphQL is an open-source data query and manipulation language for APIs, as well as a server-side execution runtime for fulfilling queries using a strongly typed schema you define for your data.

GraphQL allows clients to request exact data structures, preventing the receipt of unnecessary data or missing fields

Why GraphQL?

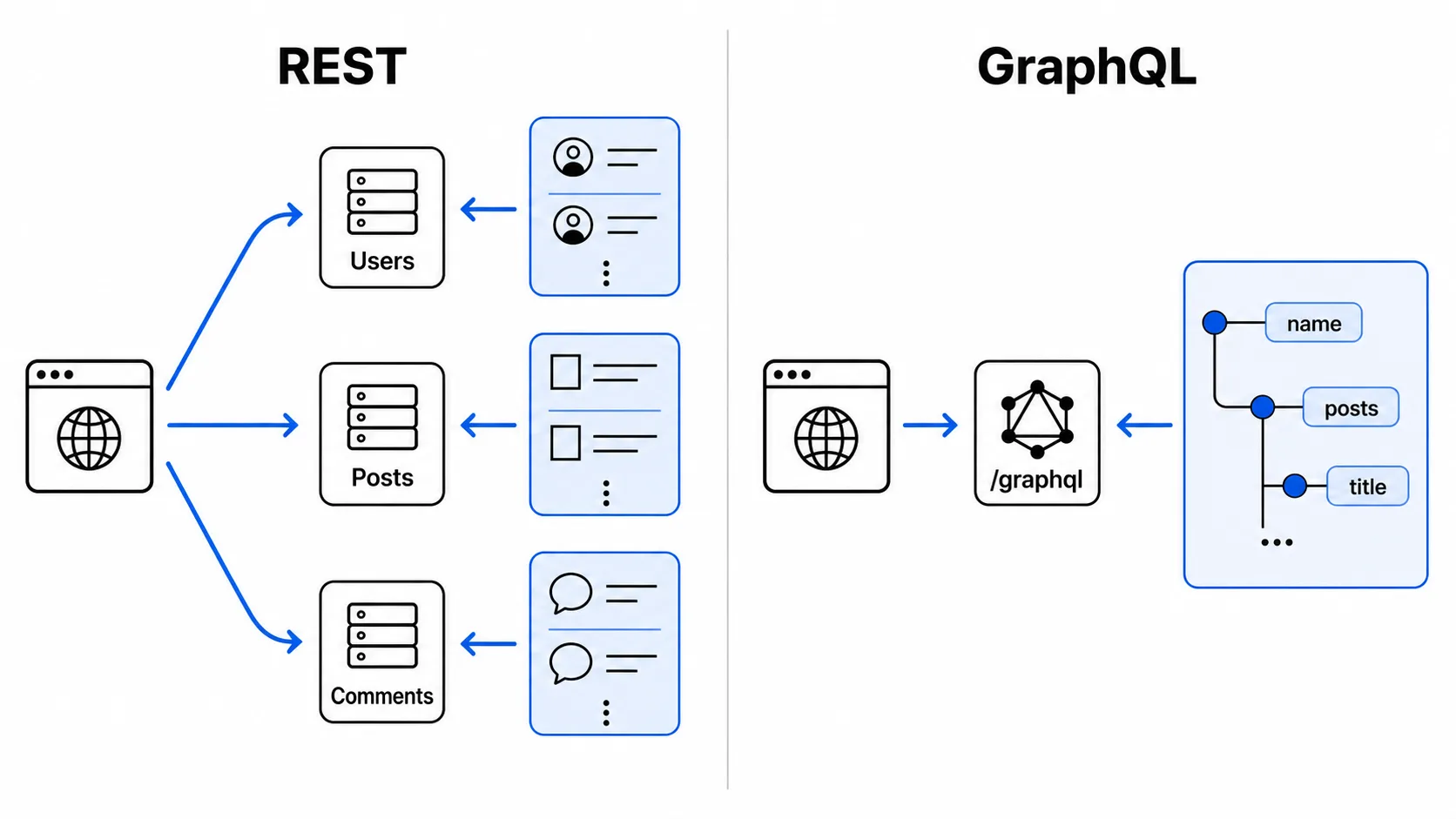

Traditional REST architectures often struggle with client-side data requirements across diverse devices (e.g., mobile apps with low bandwidth vs. desktop dashboards). This leads to two fundamental networking inefficiencies:

1. Over-fetching (Receiving too much data)

• Scenario: Client only needs username and avatarUrl.
• REST Behavior: GET /users/42 returns 30+ unneeded fields (address, billing, history).
• Result: Wasted bandwidth, higher memory usage, and slower parsing.

2. Under-fetching (Receiving too little data)

• Scenario: Client needs a user profile, 3 latest posts, and comment counts.
• REST Behavior: Requires multiple sequential requests (waterfall round-trips):
  1. GET /users/42 (profile)
  2. GET /users/42/posts (posts)
  3. GET /posts/:id/comments (comments per post)
• Result: High latency, excessive network chattiness, and mobile battery drain.

The GraphQL solution

In GraphQL, a single query asks for the user, their posts, and comment counts simultaneously. The server resolves all nested relationships and returns a single JSON response matching the query structure:

query GetUserProfile {
  user(id: "42") {
    name
    avatarUrl
    posts(limit: 3) {
      id
      title
      commentsCount
    }
  }
}

The Defined Schema (SDL)

The backbone of any GraphQL service is its Schema. The schema serves as a strict, type-safe contract between the client and the server, written in Schema Definition Language (SDL).

The schema specifies:

1. All available types and their properties.
2. Relationships between types (the data graph).
3. The root entry points for client operations: Query, Mutation, and Subscription.

# 1. Custom Object Types
type User {
  id: ID!
  name: String!
  email: String!
  role: Role!
  posts: [Post!]!
}

type Post {
  id: ID!
  title: String!
  content: String!
  published: Boolean!
  author: User!
  commentsCount: Int!
}

# 2. Enums
enum Role {
  ADMIN
  AUTHOR
  READER
}

# 3. Root Operation Types
type Query {
  user(id: ID!): User
  feed(limit: Int = 10): [Post!]!
}

type Mutation {
  createPost(title: String!, content: String!): Post!
  deletePost(id: ID!): Boolean!
}

Schema type modifiers

Core Operations: Queries and Mutations

GraphQL separates operations based on their intent:

1. Queries for reading data

A query requests specific fields from objects. Clients pass arguments and dynamic variables directly into the query.

Example: Query with variables

query FetchUserWithPosts($userId: ID!, $postLimit: Int!) {
  user(id: $userId) {
    name
    email
    posts(limit: $postLimit) {
      title
      commentsCount
    }
  }
}

2. Mutations for updating data

While query fields are executed in parallel by the server runtime, mutations execute serially to prevent race conditions when altering data.

A mutation can modify state on the server and immediately query the updated data in the same round-trip, eliminating the need for a secondary GET request.

mutation CreateNewPost($input: CreatePostInput!) {
  createPost(input: $input) {
    id
    title
    published
    author {
      name
    }
  }
}

How GraphQL Communicates Over HTTP

Although GraphQL is transport-agnostic, the standard practice is to transmit requests over HTTP POST to a single endpoint (e.g., https://api.example.com/graphql).

┌──────────────┐                                        ┌──────────────┐
│    Client    │ ─── POST /graphql (JSON payload) ────> │GraphQL Server│
│ (Web/Mobile) │ <── 200 OK { data, errors } ────────── │   Runtime    │
└──────────────┘                                        └──────────────┘

The Execution Model: Resolvers

How does a GraphQL server actually fetch data from databases, microservices, or third-party APIs? Through resolver functions.

Every field in a GraphQL schema is backed by a resolver function on the server. The resolver function tells the runtime how to fetch the data for that field:

               ┌───────────────────────┐
               │    Incoming Query     │
               └───────────┬───────────┘
                           │
                 ┌─────────▼─────────┐
                 │    Query.user     │ ──> resolver: db.users.findById(id)
                 └─────────┬─────────┘
                           │
             ┌─────────────┴─────────────┐
             ▼                           ▼
   ┌───────────────────┐       ┌───────────────────┐
   │    User.name      │       │    User.posts     │ ──> resolver: db.posts.byUser(parent.id)
   │ (trivial getter)  │       └─────────┬─────────┘
   └───────────────────┘                 │
                               ┌─────────┴─────────┐
                               ▼                   ▼
                     ┌───────────────────┐ ┌───────────────────┐
                     │    Post.title     │ │Post.commentsCount │ ──> resolver: count(post.id)
                     └───────────────────┘ └───────────────────┘

System Design Trade-Offs: When to Use GraphQL

While GraphQL solves over-fetching and simplifies complex client-driven UI requirements, it introduces specific architectural challenges.

┌─────────────────────────────────────────────────────────────────────────────┐
│                         GraphQL Architectural Matrix                        │
├──────────────────────────────────────┬──────────────────────────────────────┤
│ Advantages                           │ Challenges & Engineering Trade-Offs  │
├──────────────────────────────────────┼──────────────────────────────────────┤
│ ✔ Zero over/under-fetching           │ ✖ Complex caching (no URL-based CDN) │
│ ✔ Single network round-trip          │ ✖ Vulnerable to N+1 backend queries  │
│ ✔ Strong contract (SDL & introspection) ✖ Risk of recursive/expensive queries│
│ ✔ Client-driven schema evolution     │ ✖ Additional runtime complexity      │
└──────────────────────────────────────┴──────────────────────────────────────┘

REST vs. GraphQL Feature Comparison

Key Takeaways

• Structured Queries: GraphQL allows clients to request exactly what they need, eliminating over-fetching (wasted payload) and under-fetching (multiple network round trips).
• Defined Schema: The Schema Definition Language (SDL) serves as the type-safe contract defining types, relationships, and entry points (Query, Mutation, Subscription).
• Queries vs. Mutations: Queries are side-effect-free and run in parallel; mutations perform state changes and execute serially.
