IP
Understand network addressing with IPv4 and IPv6, public vs. private IPs, packet headers, protocol layering, and application communication using HTTP.
Lesson goal
By the end of this lesson, you will understand how network endpoints are addressed, how IPv4 and IPv6 work, how IP packets carry routing metadata, and how protocol layers connect application data with HTTP.
Why networks need addresses
When machines communicate, the network needs a way to distinguish one machine from another. Unique addresses provide that distinction.
IP addresses identify endpoints
An IP address identifies a network endpoint—a machine or connection point involved in communication. By using addresses, a network can identify which endpoint communication belongs to.
Core idea
Communicating machines need unique addresses so network endpoints can be identified. IP addresses provide those endpoint identities.
IPv4 addressing
An IPv4 address is a 32-bit address used to represent a value in four parts.
It is written as four decimal octets, separated into four sections. Each octet ranges from 0 to 255.
[octet] . [octet] . [octet] . [octet]Key IPv4 rules
- IPv4 addresses are 32 bits long.
- They are written as four decimal octets (e.g.,
192.168.1.1). - Each octet must be between 0 and 255.
IPv4 and IPv6
IPv4 and IPv6 use fundamentally different address spaces to handle network connectivity.
- IPv4: Has a limit of roughly 4 billion addresses (2^32). This address exhaustion is the key constraint of IPv4.
- IPv6: Uses a 128-bit address space (2^128), providing a practically inexhaustible pool of unique addresses.
| Version | Address Size | Address Space | Example Format |
|---|---|---|---|
| IPv4 | 32 bits | ~4.3 billion () | 192.0.2.1 |
| IPv6 | 128 bits | ~ () | 2001:0db8:85a3::8a2e:0370:7334 |

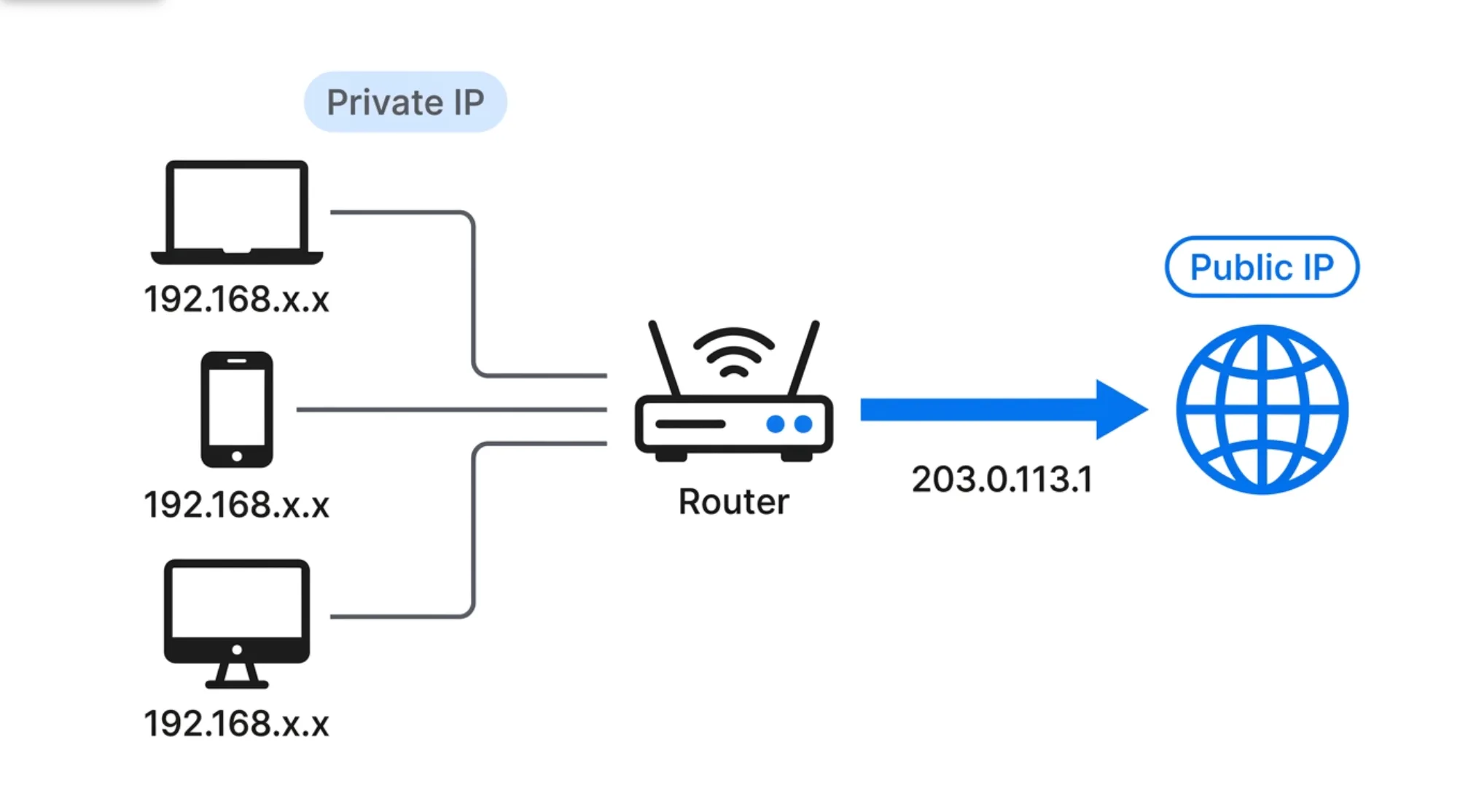

Public and private IPs

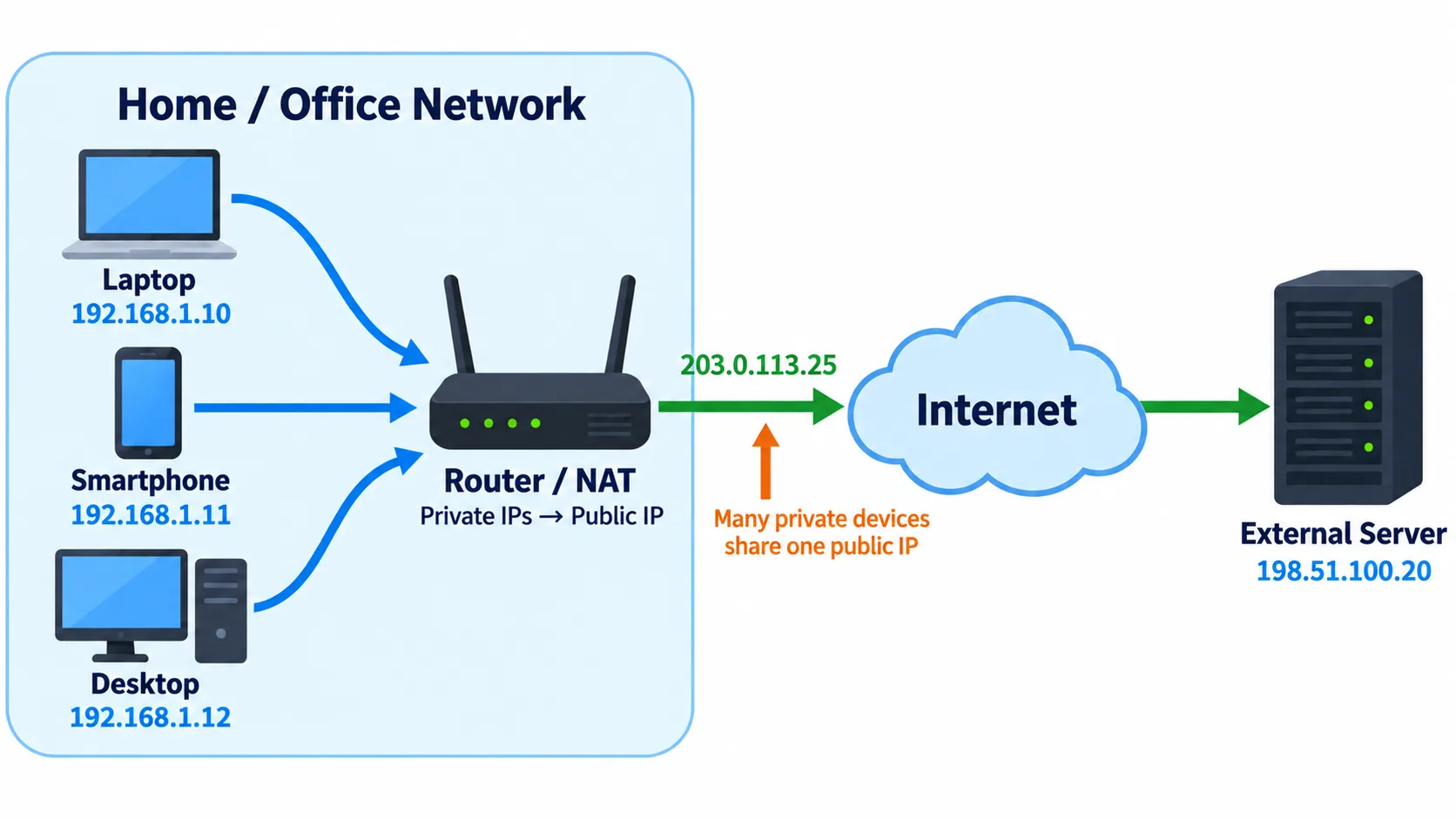

IP addresses serve two different roles depending on where they are used: public addresses enable internet access, while private addresses identify devices inside a local network.
Public IP addresses
A public IP address is used for access to the internet. It represents the network in the public, internet-facing context.
Private IP addresses
A private IP address identifies a device within a local network. It is used to distinguish devices from one another inside that local network.
| Address type | Purpose | Scope |
|---|---|---|
| Public | Enables internet access | Global / Internet-wide |
| Private | Identifies devices inside a local network | Local Area Network (LAN) |
Static and dynamic IPs
An IP address can be either static or dynamic. The difference is whether the address stays fixed or changes over time.
- Static IP address: Stays fixed and remains the same over time.
- Dynamic IP address: Can change periodically, assigned dynamically by network controllers (such as DHCP).
| Type | Behavior | Common Usage |
|---|---|---|
| Static | Stays fixed | Servers, DNS infrastructure, static gateways |
| Dynamic | Changes over time | Client devices, home routers, mobile clients |

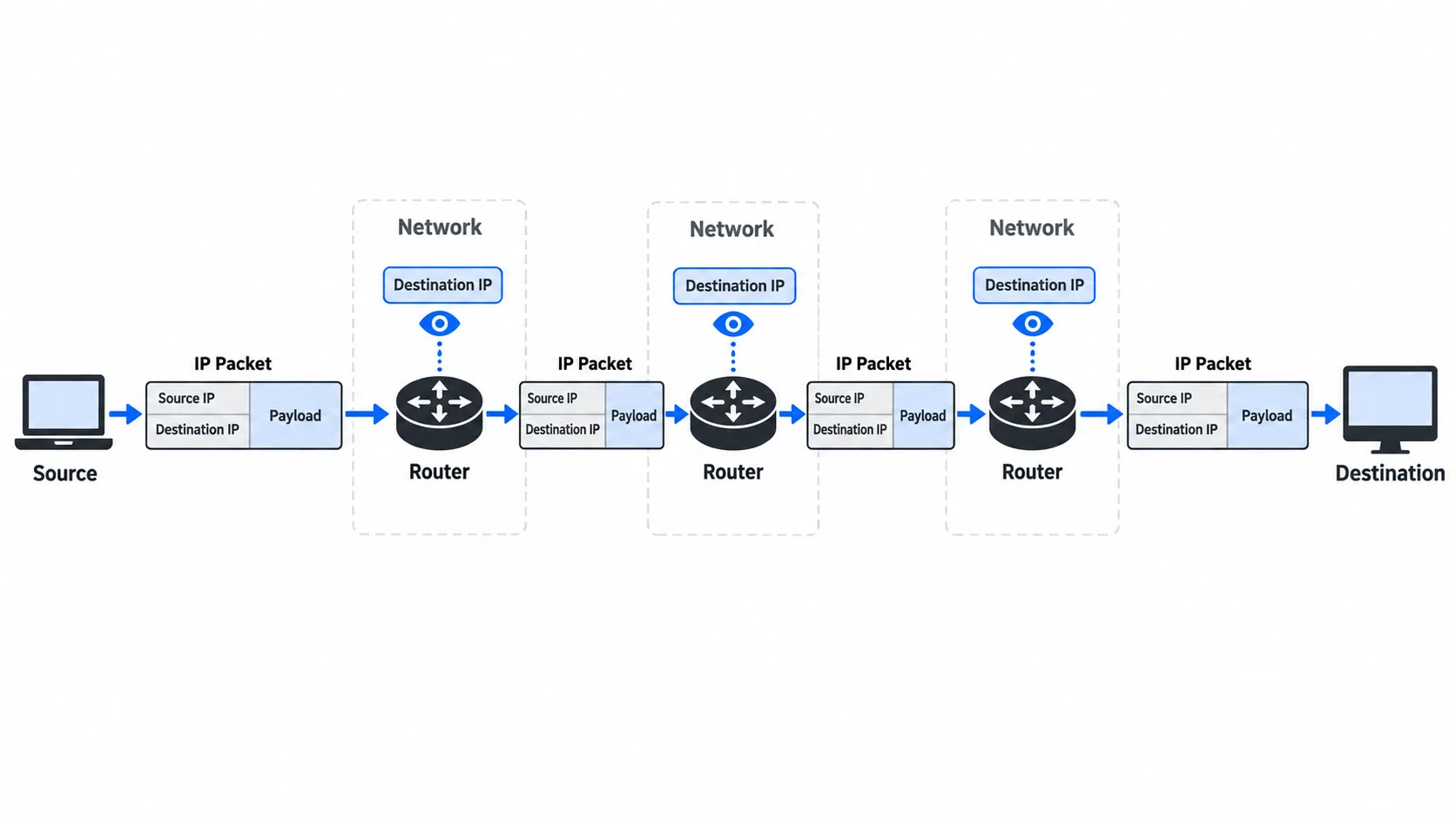

IP packets and headers
An IP packet is a fundamental unit of IP data. Each packet consists of a payload and an IP header, which contains metadata required for routing.
Source and destination metadata
| Metadata | Meaning |
|---|---|
| Source IP | The IP address associated with where the packet originates from |
| Destination IP | The IP address associated with where the packet is destined |
The header provides the source and destination IP metadata that routers inspect at each hop to forward packets to the correct endpoint.

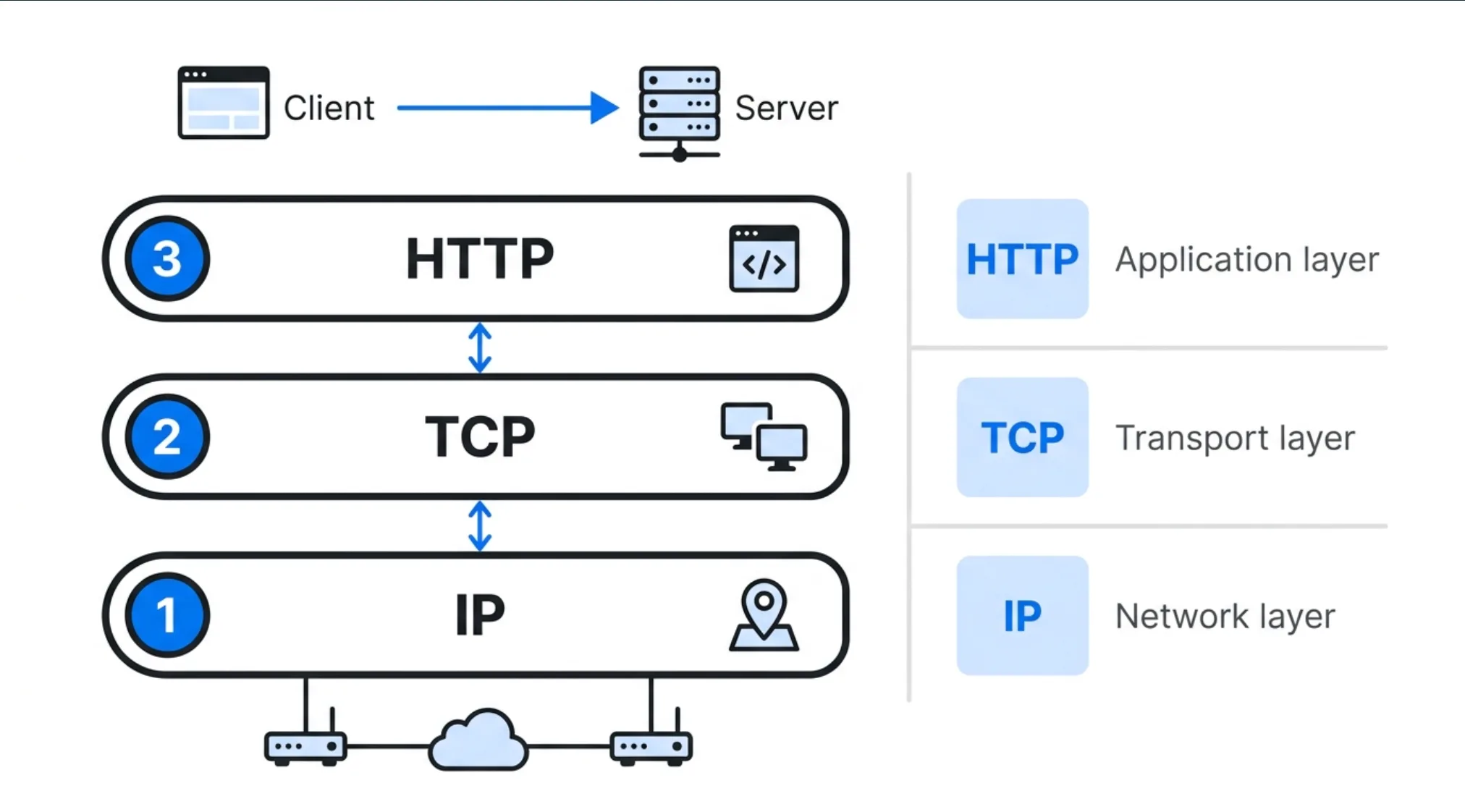

Protocol layers
A single network communication typically involves multiple protocol layers:
- Network protocols (e.g., IP)
- Transport protocols (e.g., TCP, UDP - upcoming lessons)
- Application protocols (e.g., HTTP, DNS - upcoming lessons)
These layers divide responsibility within the communication. Instead of one monolithic protocol handling everything, each layer handles a specialized part of the overall process.
| Layer | Role in Communication | Example Protocols |
|---|---|---|
| Application | Handles application data and user-facing protocols | HTTP, HTTPS, WebSockets |
| Transport | Manages port-to-port connections and delivery | TCP, UDP |
| Network | Manages host addressing and routing across networks | IPv4, IPv6 |
Main takeaway
Protocol layers divide responsibility among network, transport, and application protocols while supporting one unified communication together.
Application data and HTTP
Application data
Application data is the actual content accessed and manipulated by software (such as JSON payloads, HTML documents, or images).
HTTP
HTTP (Hypertext Transfer Protocol) is a common protocol at the application layer. It provides a standardized format for application software to request and exchange application data between clients and servers.
- Application data is the content.
- HTTP is the application-layer protocol used to transfer that content.
We will learn about each topic deeper in upcoming lessons
Key takeaways
- Unique Endpoint Addressing: IP addresses identify network endpoints so machines can be distinguished.
- IPv4 vs IPv6: IPv4 uses 32-bit addresses (4 decimal octets, 0–255, ~4 billion limit), whereas IPv6 uses 128-bit addresses to overcome capacity limits.
- Scope & Behavior: Public IPs face the global internet; private IPs operate within local networks.
- IP Packet Headers: Contain critical routing metadata, notably the source and destination IP addresses.
- Layer Separation & HTTP: Communication divides responsibilities across Network, Transport, and Application layers. Application data is the content, and HTTP is the application-layer protocol used to exchange it.
